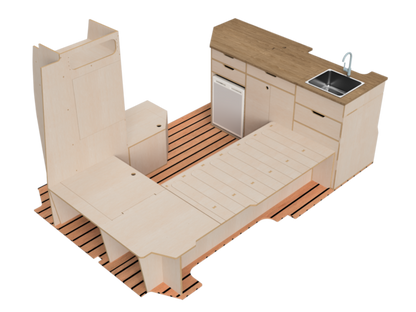

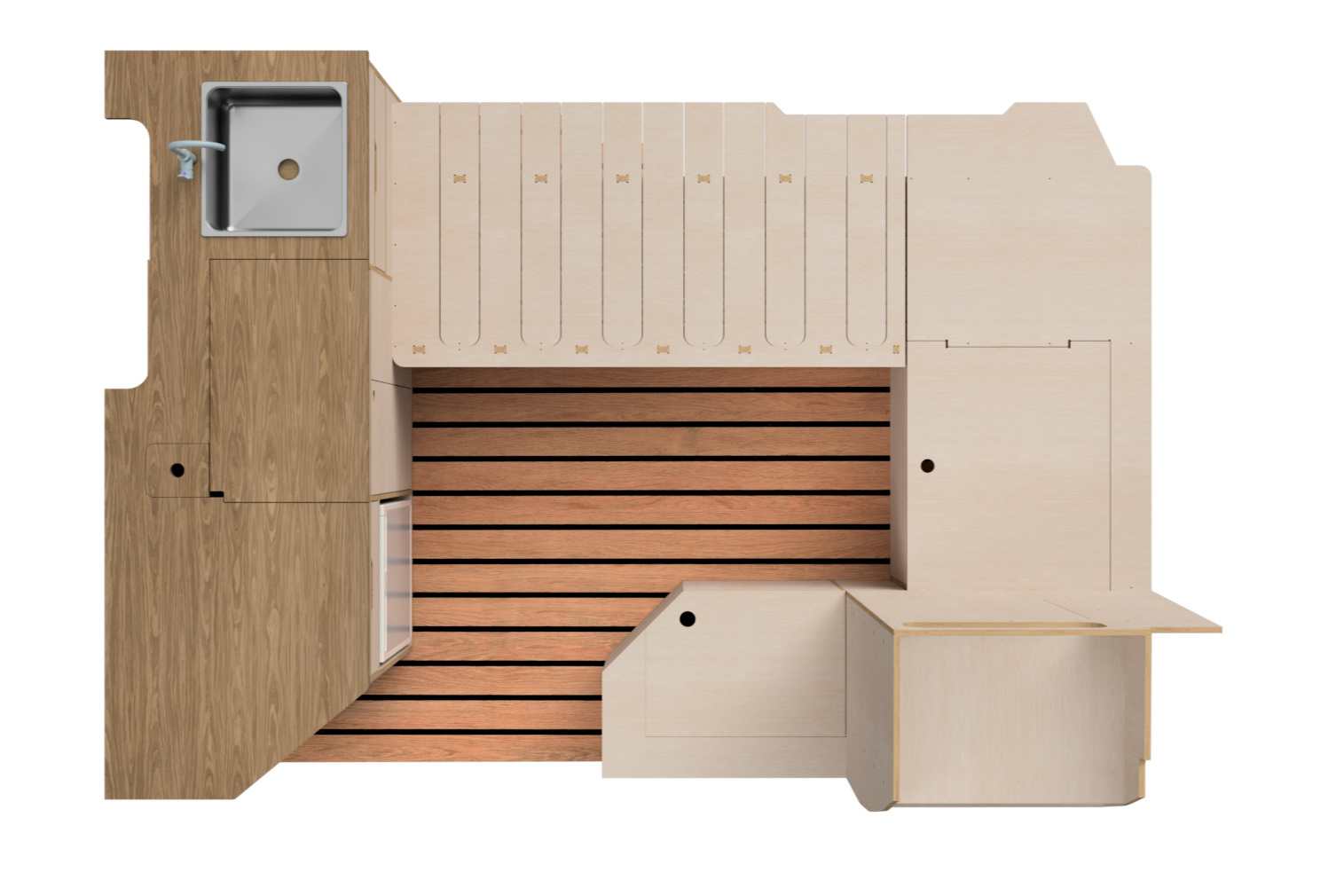

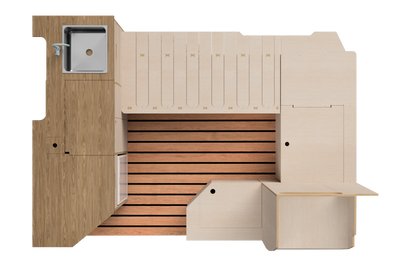

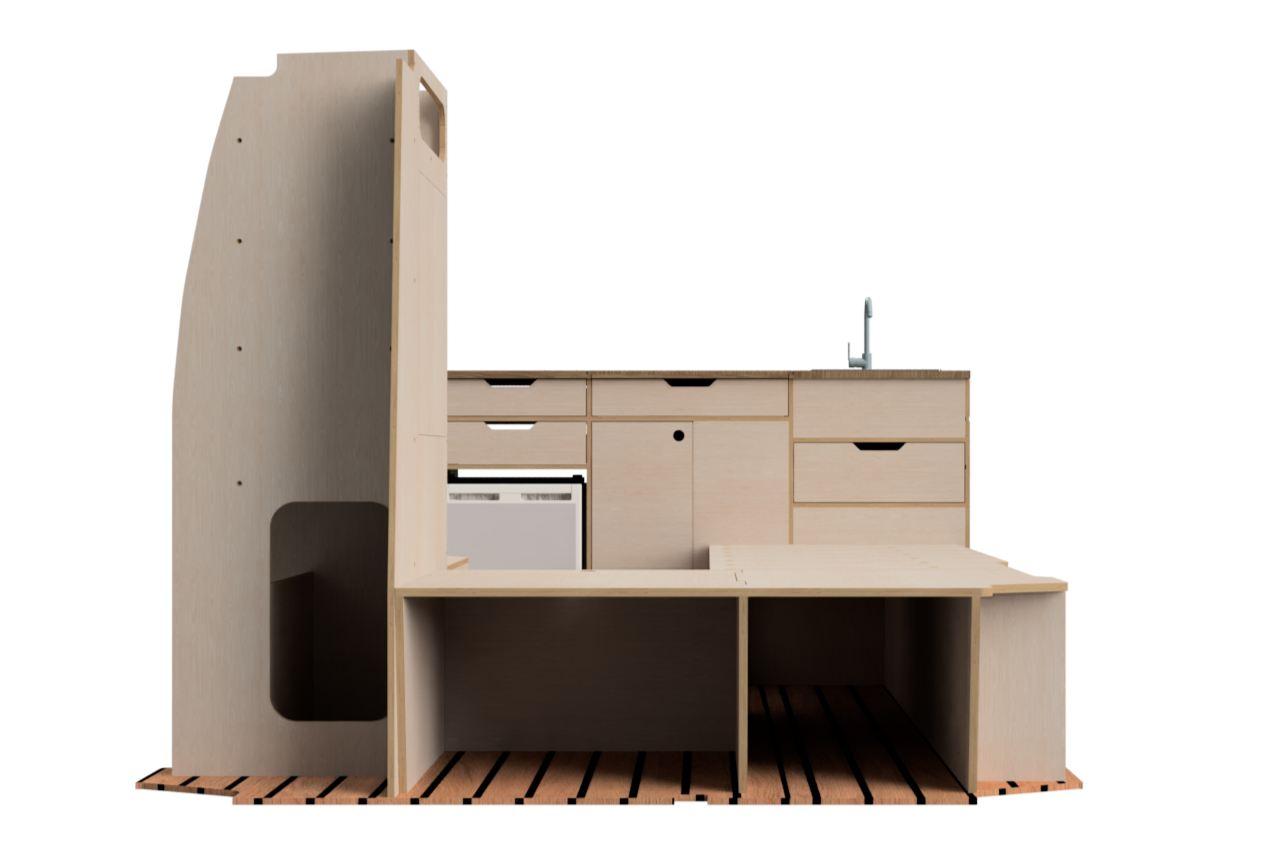

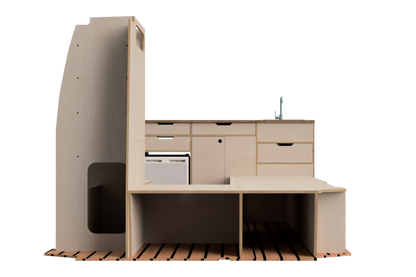

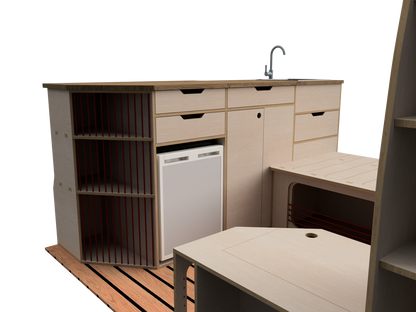

Medium Van Layout 1 L bed
Swb transits, transporters, tvps.

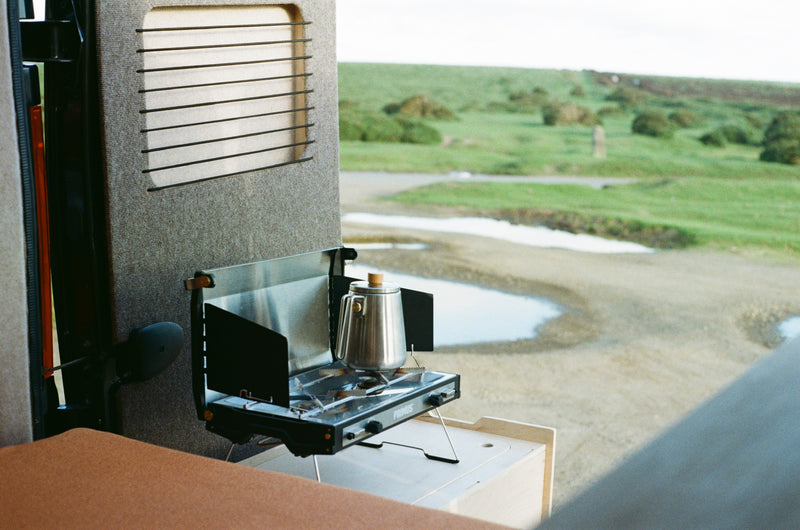

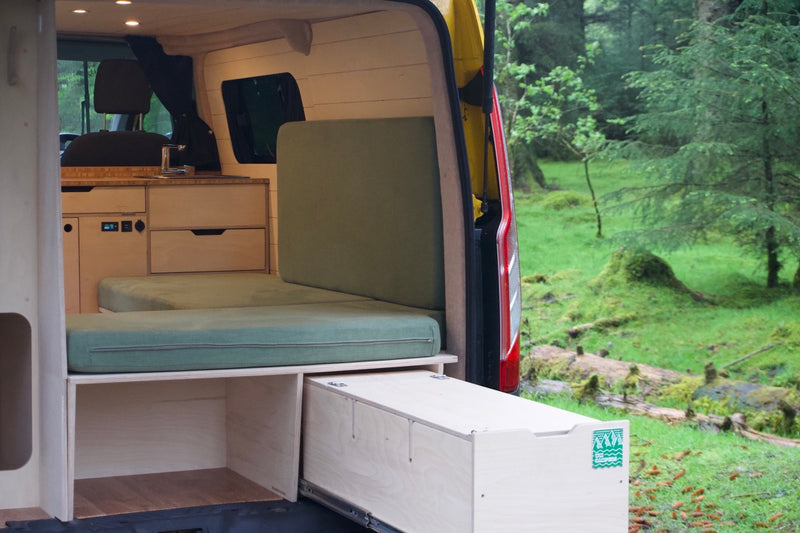

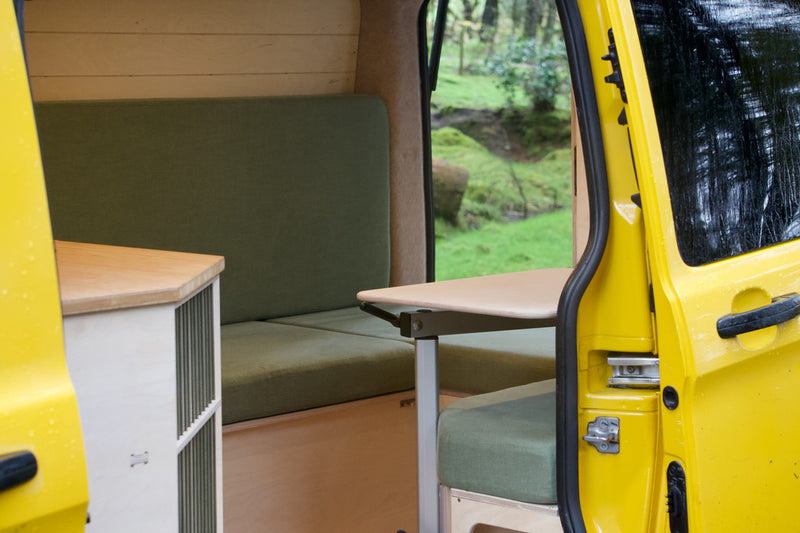

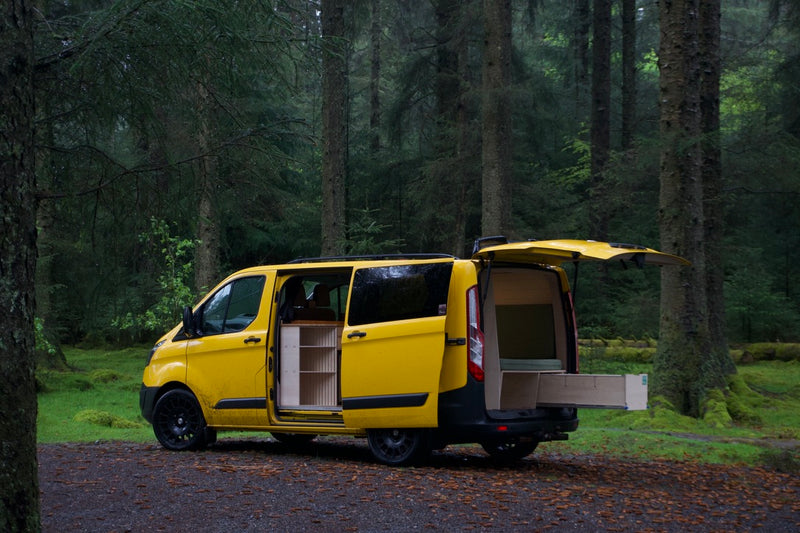

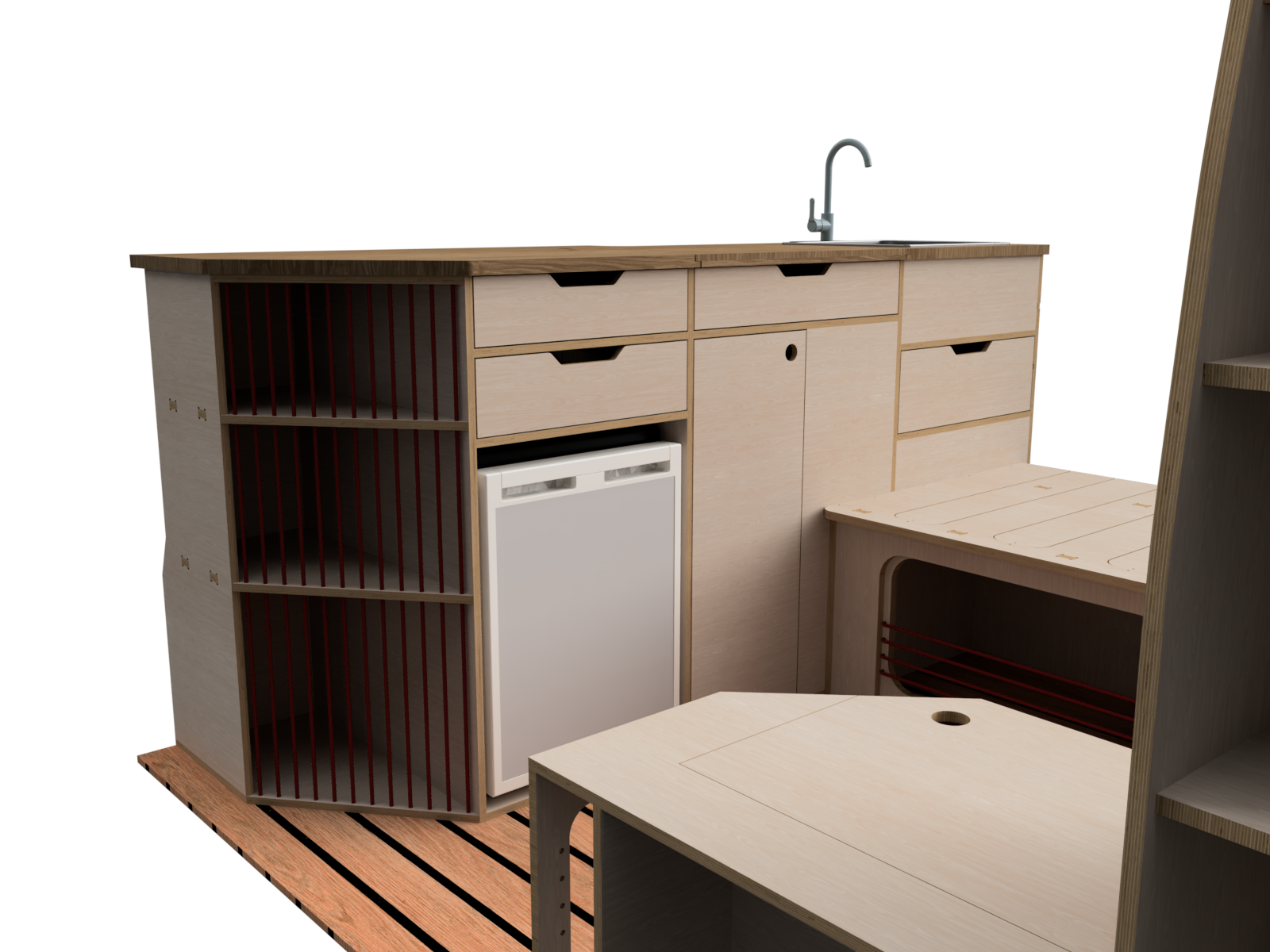

Layout 1 has been designed for the weekend warriors and nomads its comfortable, spacious and maximises storage for all the essentials. It features an L shape bench that pulls out to a small double bed, the kitchen cabinets at the front housing the hob, fridge and water system and side cabinets with a full height cupboard to the rear and an extra spot to sit, as well as a rear door pull out drawer under the bed which can be used for outdoor cooking or storage. This layout maximises storage space and creates a very comfortable and useable space.
Theres a few different variations of this layout each has its perks, whether you opt for a full double bed and narrower cabinets on the nearside or opt for extra worktop space instead of the extra seat, it can be adapted to suit everyone’s needs.
Below is our standard/recommended spec for this layout, this is what we feel suits the layout best, however it can be adjusted to suit different needs/budgets. For example upgrading the electrical system if you wish to spend more time off grid or want to run more power-hungry appliances like induction hobs.
Standard SWB Conversion spec price - £16,500.00 inc vat (LWB £16,950.00)
Standard spec includes
· 2x bonded side windows (1opening & 1 fixed)
· Full sound deadening and insulation
· Carpet lining between panels
· Plywood subfloor and Altro Wood effect vinyl flooring
· Our signature posh ply lining wall and ceiling panels
· Birch plywood furniture, finished with Osmo oil.
· Bamboo or oak worktop
· Lagun swivelling table leg and birch table.
· Custom upholstered cushions
· Premade curtains
Standard spec electrical system
· 105ah lithium leisure battery from Fogstar
· Victron Orion dc-dc charger (for charging while you drive)
· Victron Multiplus inverter/charger (500va) (provides 240v power off grid and charges your leisure battery when on hookup)
· Victron BMV smart battery monitor
· 100watt flexible solar panel with Victron MPPT charger controller
· All relevant wiring/safety devices/fusing
· USB charging points
· 240v sockets
· 4x Touch spotlights
· Reading light
Standard spec appliances
· 45L Dometic compressor fridge
· Primus Tupike camping stove
· 26x32cm Stainless steel sin
· Micro switch tap
Water system
· Underslung freshwater tank (capacity depends on van model)
· CBE water level gauge
· Shurflo Water pump
· 20L wastewater tank (internal jerry can)
