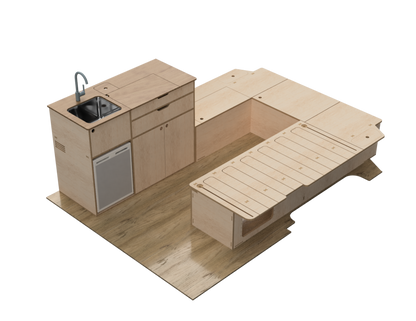

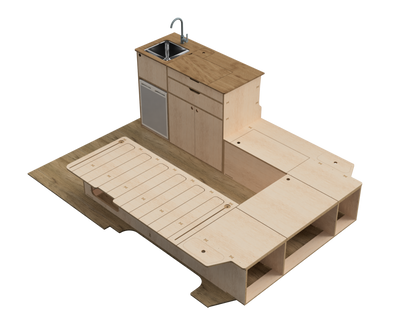

Medium Van Layout 2
Swb transits, transporters, tvps.

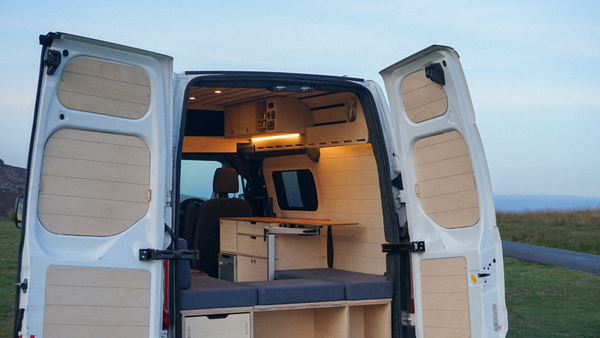

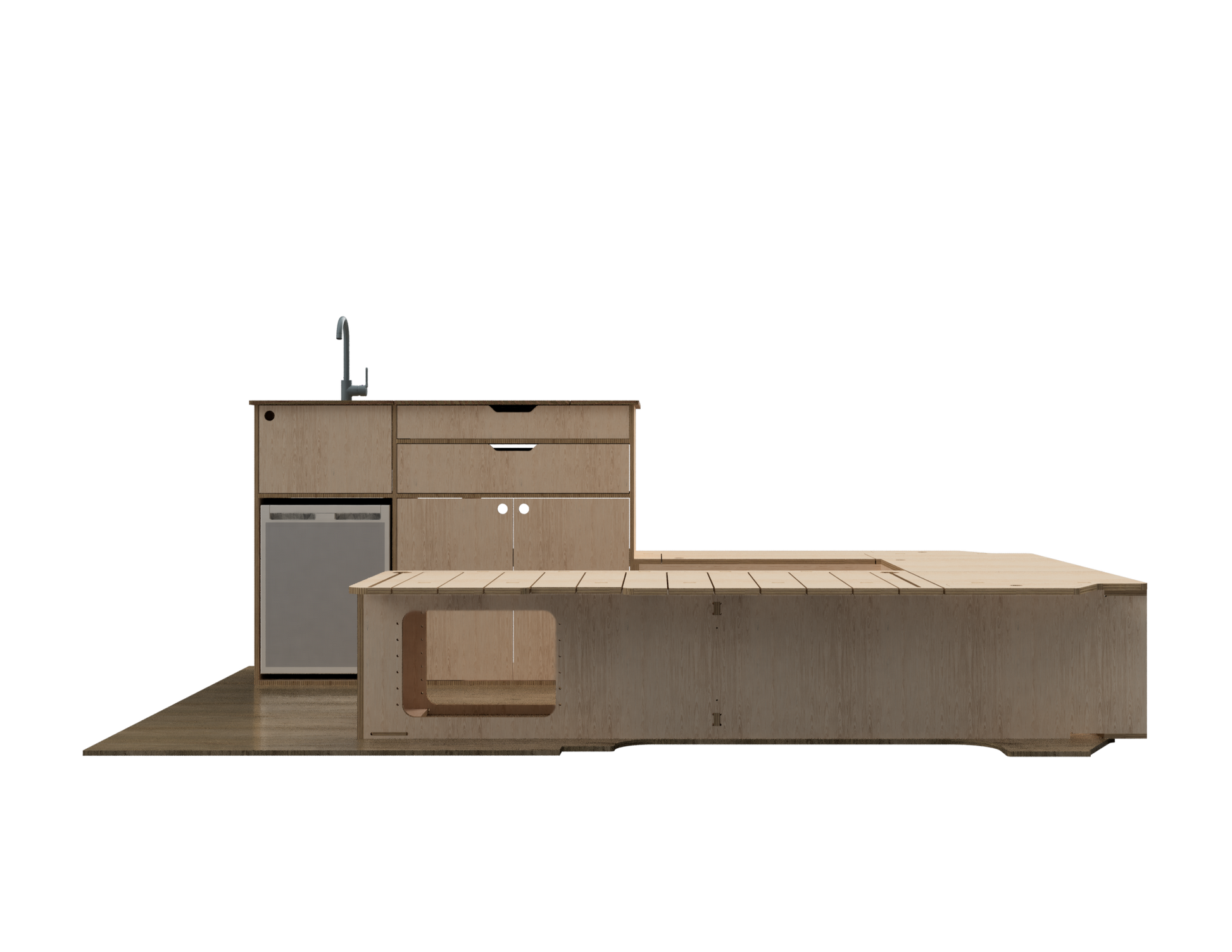

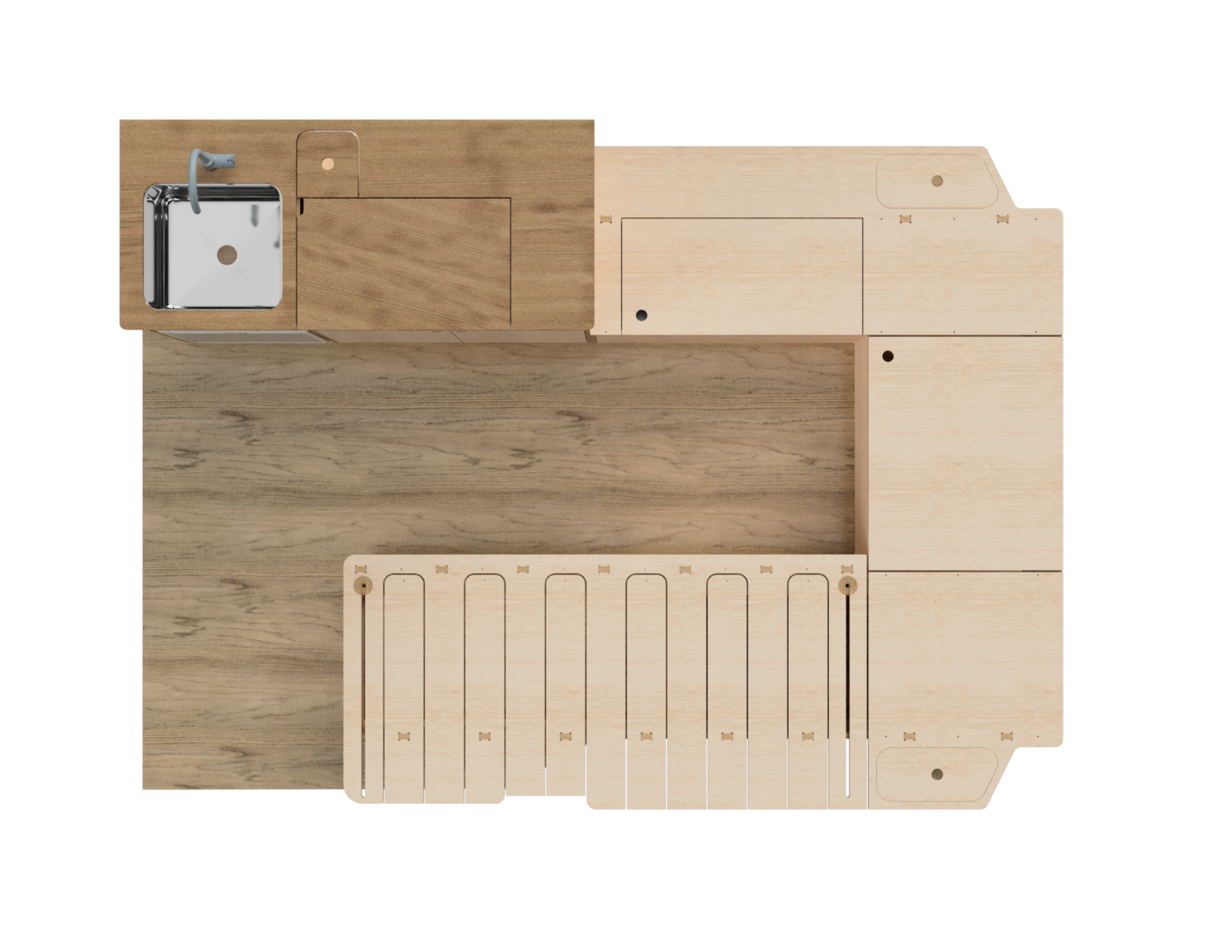

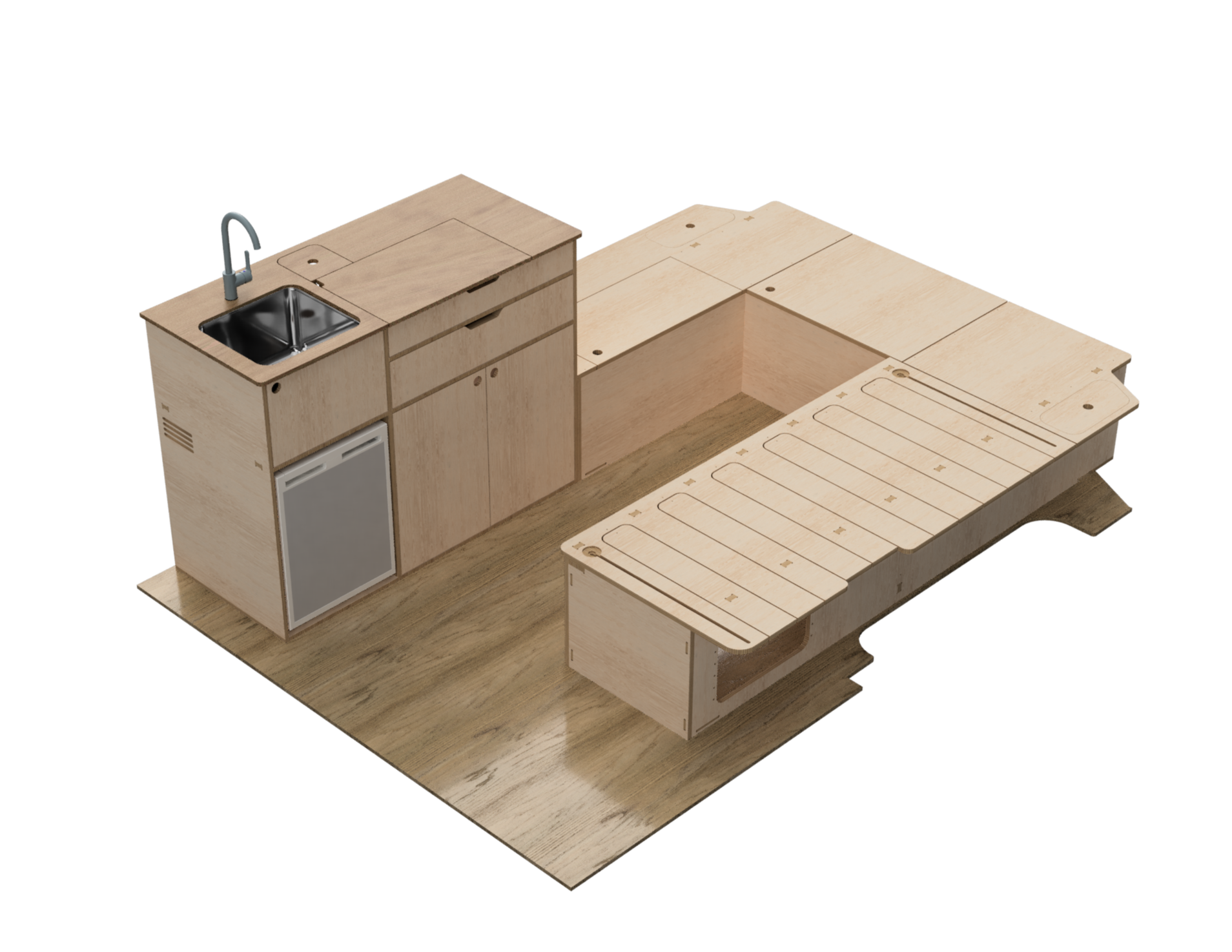

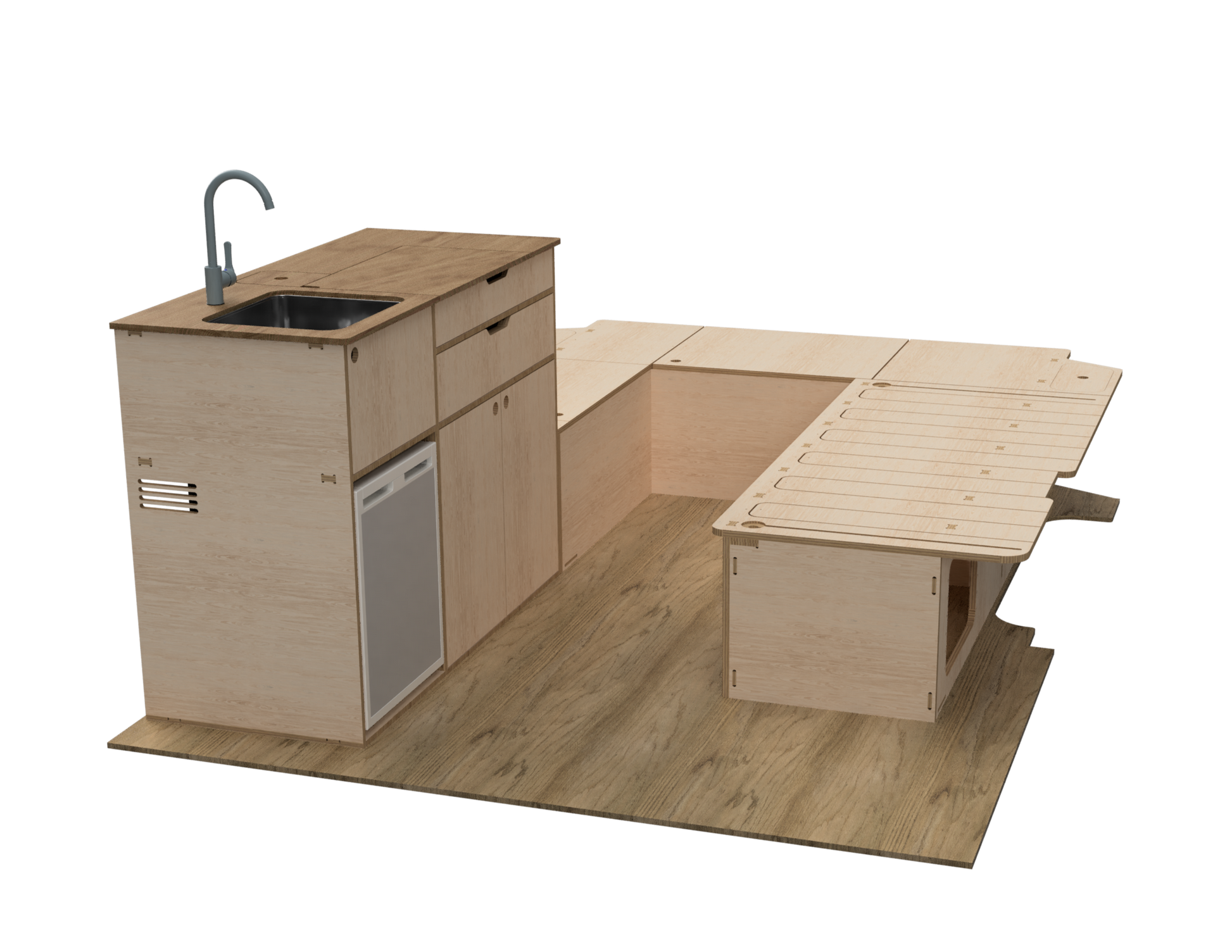

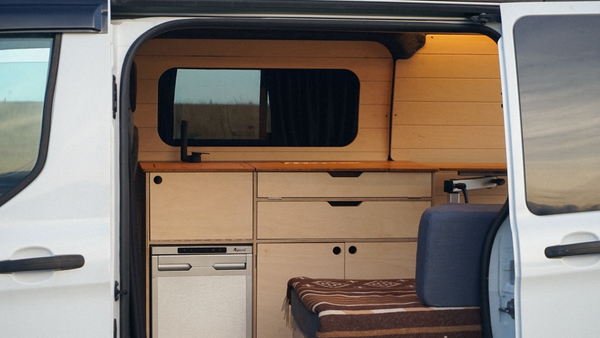

Layout 2 is the perfect choice for shorter trips, it features a U shape seating area that pulls out to a small double bed, and a smaller kitchen cabinet on the driver’s side that houses the fridge, hob, and water system, there is then a rear pull out drawer under the bed as well.
This layout is very spacious and comfortable, we recommend a swivel base on the double passenger seat to extend the living area even further, doing this makes a small van feel much bigger.
Below is our standard/recommended spec for this layout, this is what we feel suits the layout best, however it can be adjusted to suit different needs/budgets. For example upgrading the electrical system if you wish to spend more time off grid or want to run more power-hungry appliances like induction hobs.
Standard SWB Conversion spec price - £16,250.00 inc vat (LWB £16,750.00)
Standard spec includes
- 2x bonded side windows (1opening & 1 fixed)
- Full sound deadening and insulation
- Carpet lining between panels
- Plywood subfloor and Altro Wood effect vinyl flooring
- Our signature posh ply lining wall and ceiling panels
- Birch plywood furniture, finished with Osmo oil.
- Bamboo or oak worktop
- Lagun swivelling table leg and birch table.
- Custom upholstered cushions
- Premade curtains
Standard spec electrical system
- 105ah lithium leisure battery from Fogstar
- Victron Orion dc-dc charger (for charging while you drive)
- Victron Multiplus inverter/charger (500va) (provides 240v power off grid and charges your leisure battery when on hookup)
- Victron BMV smart battery monitor
- 100watt flexible solar panel with Victron MPPT charger controller
- All relevant wiring/safety devices/fusing
- USB charging points
- 240v sockets
- 4x Touch spotlights
- Reading light
Standard spec appliances
- 45L Dometic compressor fridge
- Primus Tupike camping stove
- 26x32cm Stainless steel sink
- Micro switch tap
Water system
- Underslung freshwater tank (capacity depends on van model)
- CBE water level gauge
- Shurflo Water pump
- 20L wastewater tank (internal jerry can)
